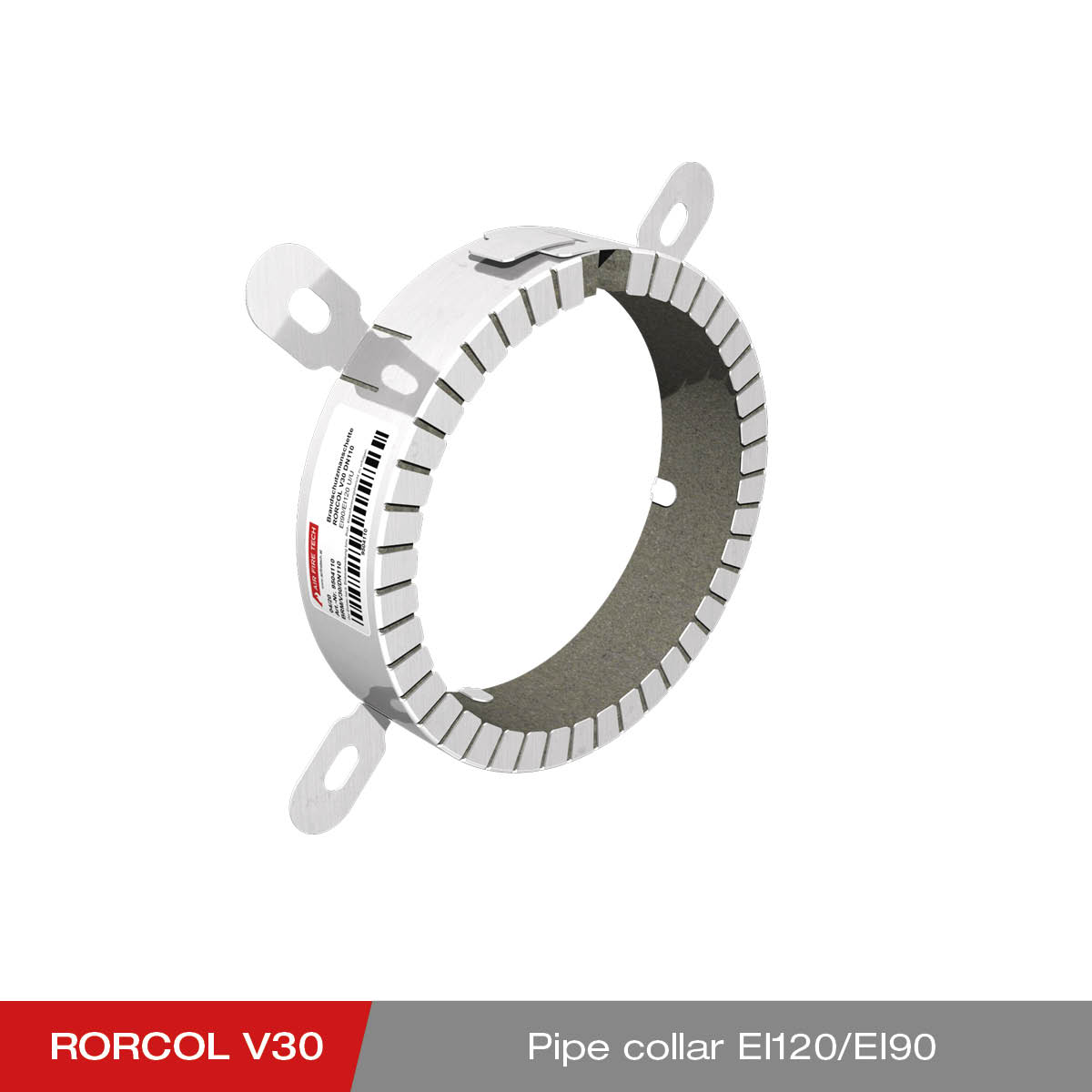

RORCOL V30
For plastic waste water pipes
Logo - CE mark

Brief information

  • Classification: EI120/EI90
  • Dimensions: DN40 to DN140
  • Installation depth: 31 mm
Product informationDownloads
Inquiries

Downloads

Installation Instructions and Declaration of Performance
Brochure
Wood Construction Brochure
Tender text

Other languages

English
Installation instructions
& DoP
Brochure
Timber Construction Brochure



French

& DoP Assembly Instructions
Brochure
Wood Construction Brochure



Dutch

& DoP Installation Guide
Brochure
Wooden Construction Brochure



Croatian
Installation instructions for
& DoP



Estonia

& DoP Installation Guide
Brošüür
Brochure on Wooden Structures



Latvian

& DoP Installation Instructions
Brošūra
Brochure on Wood Construction



In Lithuanian
Brochure on Wooden Structures



p

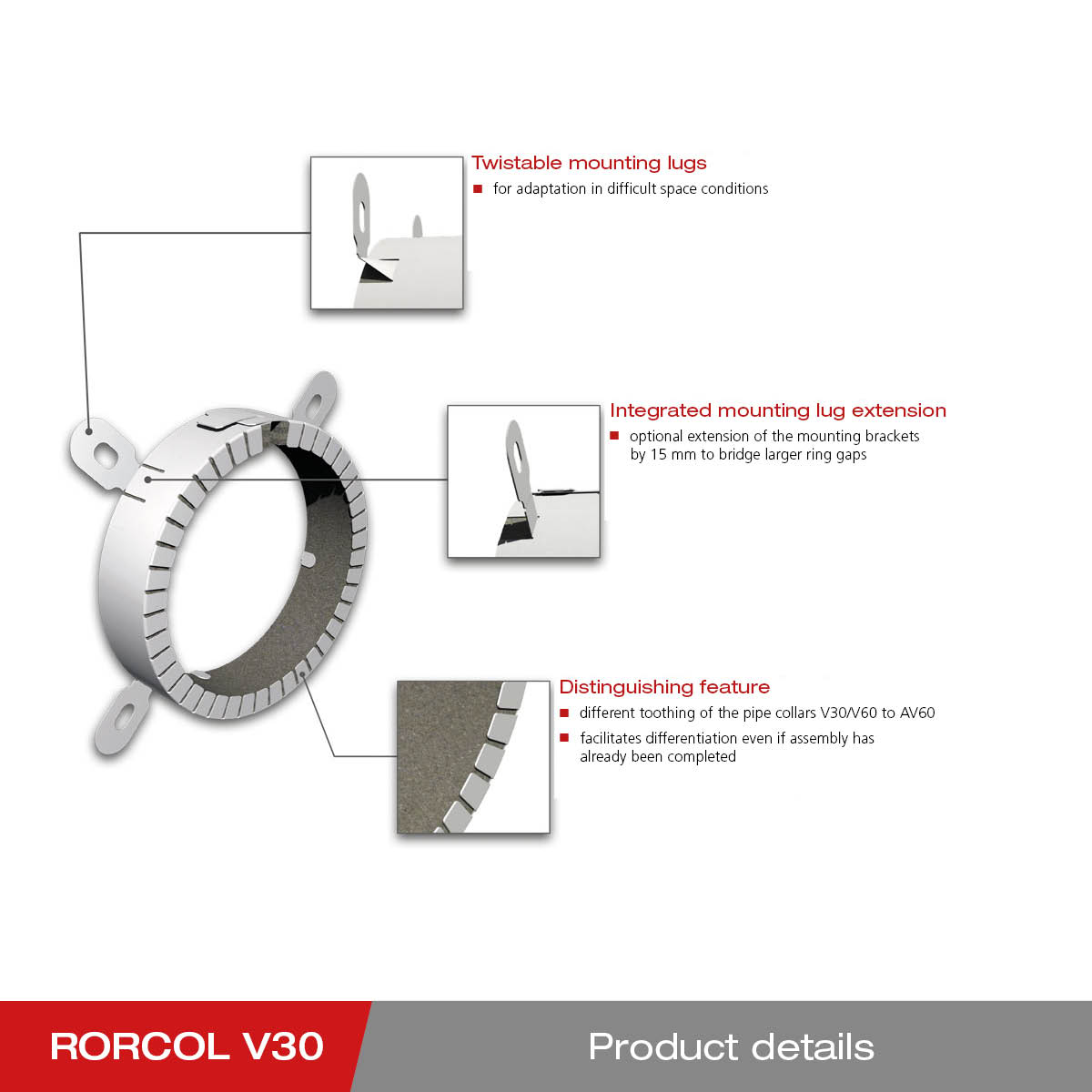

Special features

  • Housing made of NIROSTA

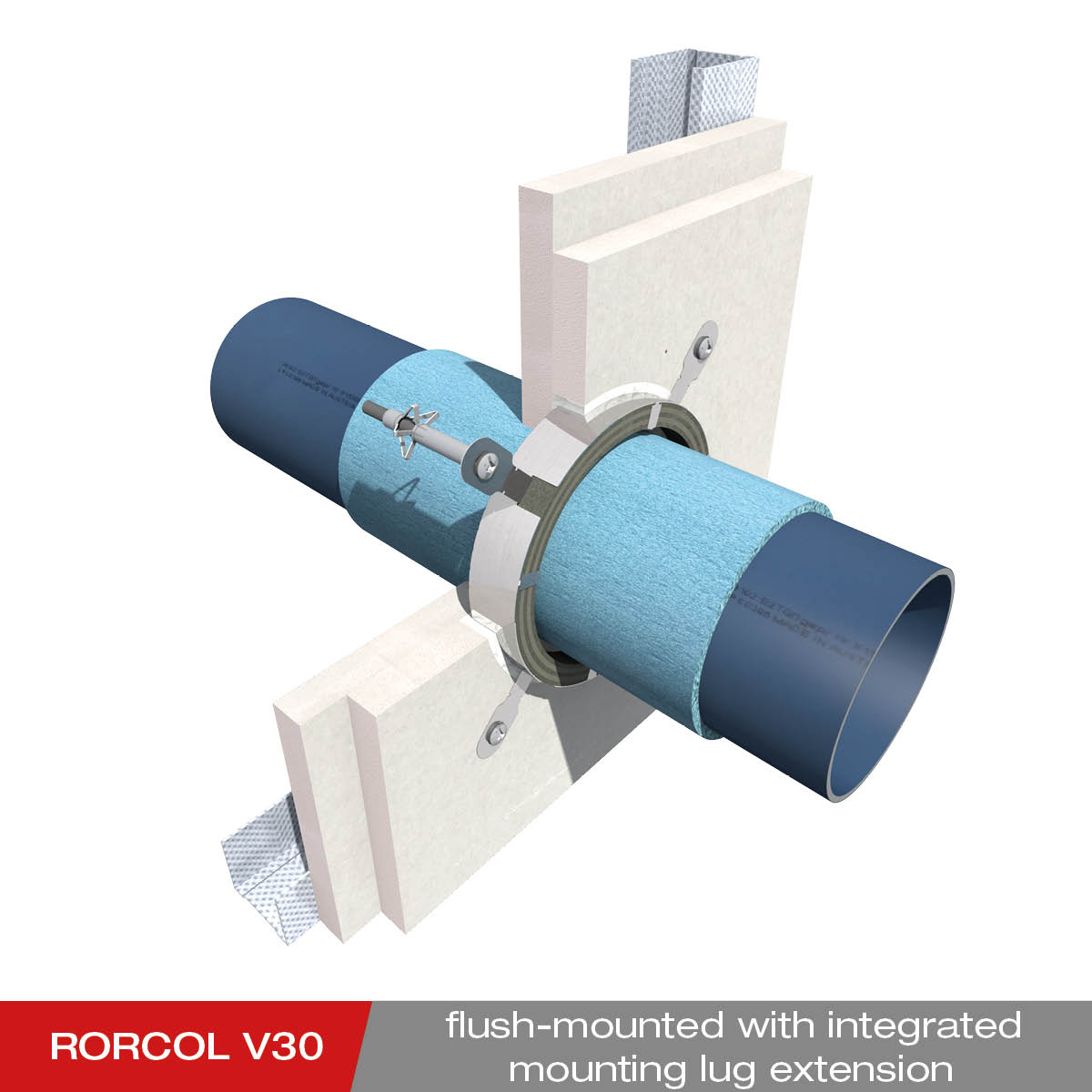

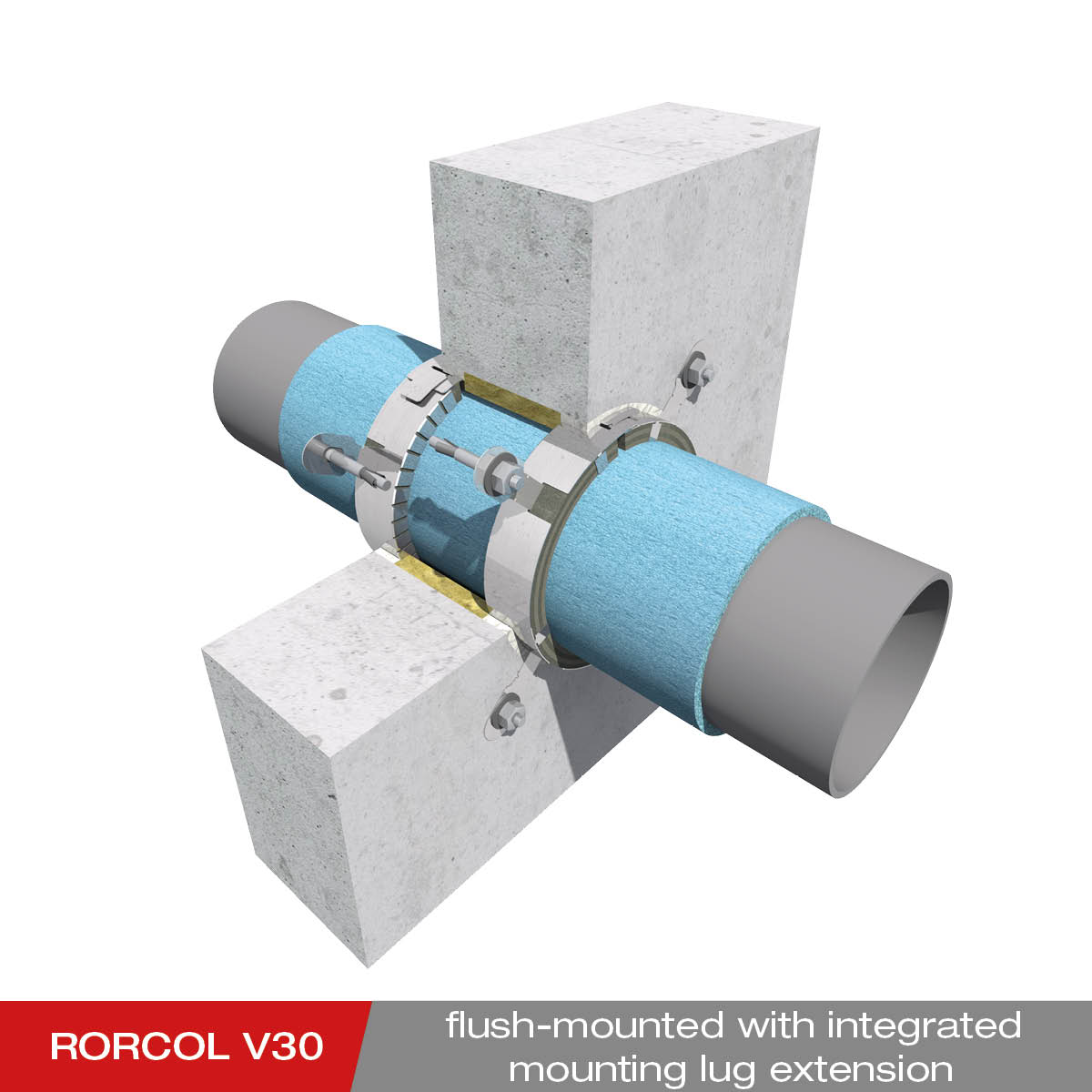

  • Integrated mounting bracket extension for bridging larger ring gaps
  • Twistable mounting brackets
  • Zero distance between the fire protection collars

Product description

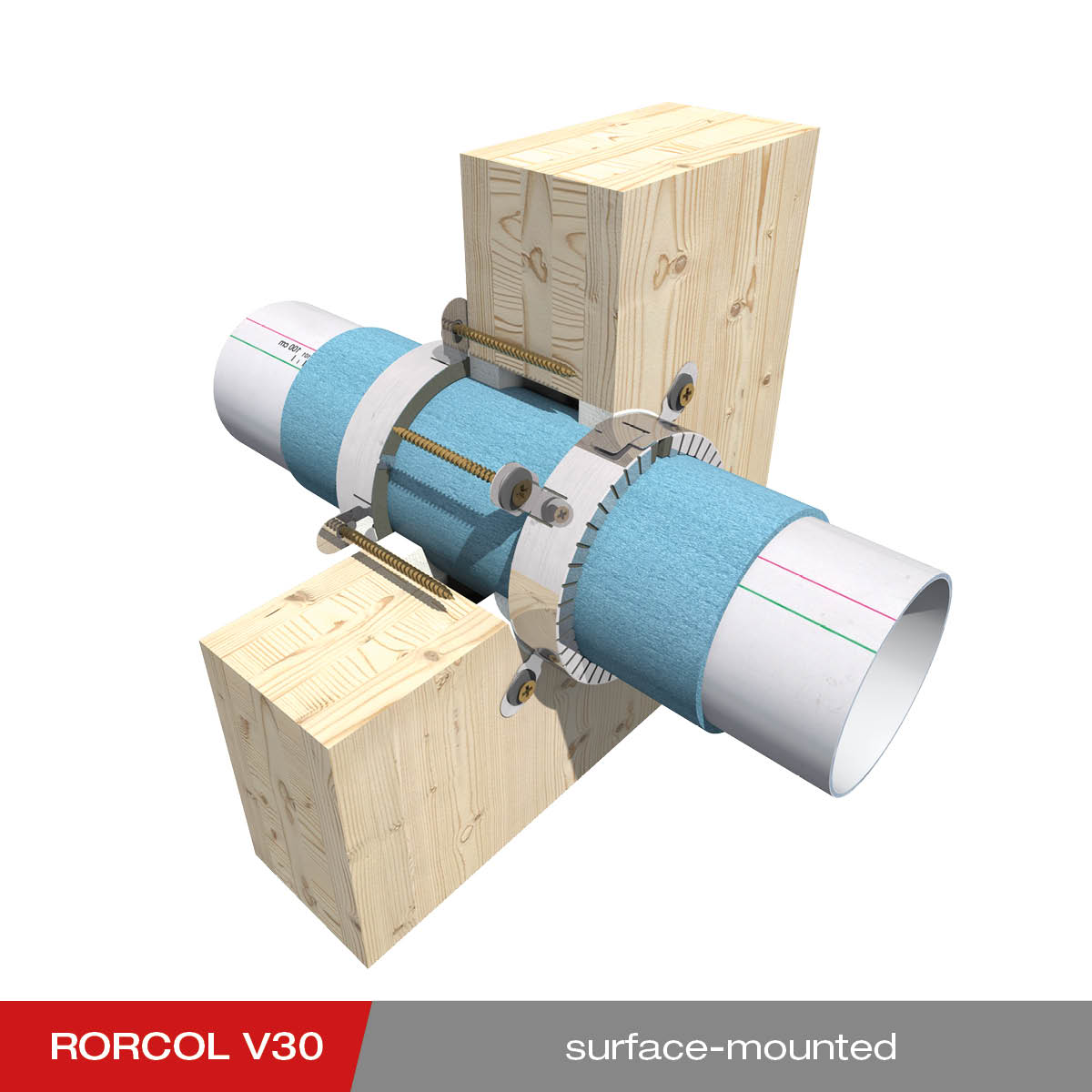

The RORCOL V30 fire protection sleeve is used to seal off plastic waste water pipes. It consists of a stainless steel housing with an internal intumescent layer. The different serration of the stainless steel housing allows the RORCOL V30 fire protection sleeve to be distinguished from the RORCOL AV60 and assigned to the intended area of application. The mounting brackets are used to fasten the fire protection sleeve, which can be rotated by up to 45° if space is limited. The integrated mounting lug extension allows it to be extended by 15 mm. The RORCOL V30 fire protection collar is closed using a locking system.

Functionality

In the event of fire, the intumescent inside the stainless steel housing expands. At the same time, plastic pipes soften in the event of fire and melt away. The cross-section that becomes free is securely sealed by the fire protection sleeve and heat transfer to the side facing away from the fire is restricted.

Further information

Permitted separating components

Distance regulation





Size chart

Item no.TypeNominal sizeVE
9504040 BRM/V30/DN40 16-40 mm 50
9504056 BRM/V30/DN50-56 50-56 mm 30
9504063 BRM/V30/DN59-63 59-63 mm 25
9504080 BRM/V30/DN75-80 75-80 mm 15
9504100 BRM/V30/DN90-100 90-100mm 12
9504110 BRM/V30/DN110 110 mm 40
9504125 BRM/V30/DN125 125 mm 35
9504140 BRM/V30/DN140 140 mm 8
