EDS / EDD / EDT EI90 for partition walls
Socket outlet partitioning for flush-mounted electrical sockets

Brief information

  • Classification: EI90
  • Adapted to wall type and wall thickness
  • Acoustically tested
Product informationDownloads
Inquiries

Downloads

Tender text

Other languages

p

Special features

  • Virtually no effect on the sound insulation value of the separating component
  • Smokeproof
  • Suitable for double-sided fire exposure
  • Subsequent installation in shaft walls and suspended ceiling constructions possible

Product description

The electrical box penetration seal is used for the fire protection sealing of single (EDS), double (EDD) and triple (EDT) flush-mounted boxes.

The structure of the housing is adapted to the separating component (partition wall, shaft wall, suspended ceiling construction). The installation housing includes an installation frame for simple and secure installation. The cable entry can be positioned at the side or rear.

Functionality

In the event of fire, the intumescent in the cable entry expands. This closes the cross-section and restricts heat transfer to the side facing away from the fire.

Further information

Size chart

Item no.TypeVE
6100000 EDS-25/EI90 - for 1-gang flush-mounted electrical boxes 1
6200000 EDD-25/EI90 - for 2-gang flush-mounted electrical boxes 1

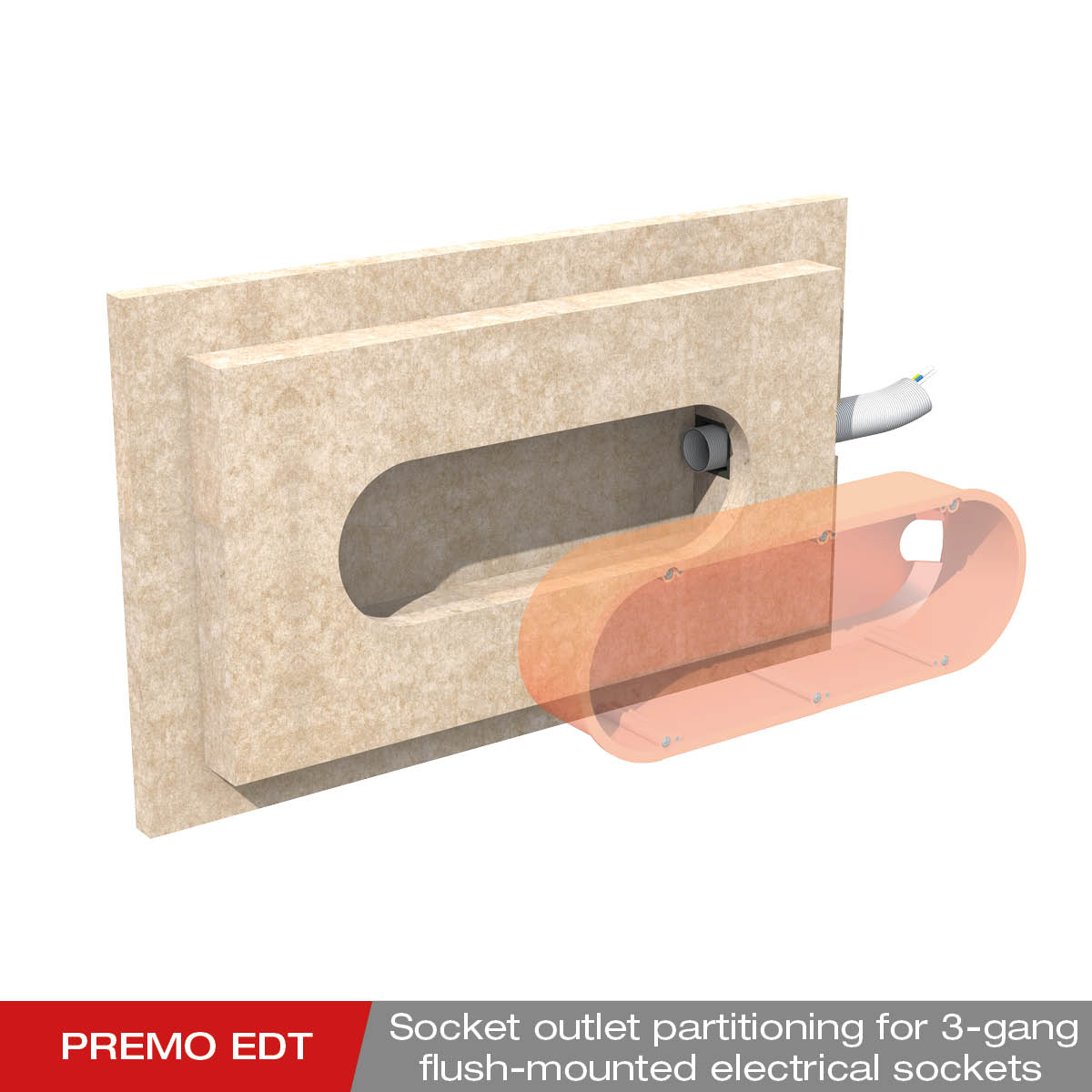

6300000 EDT-25/EI90 - for 3-gang flush-mounted electrical boxes 1

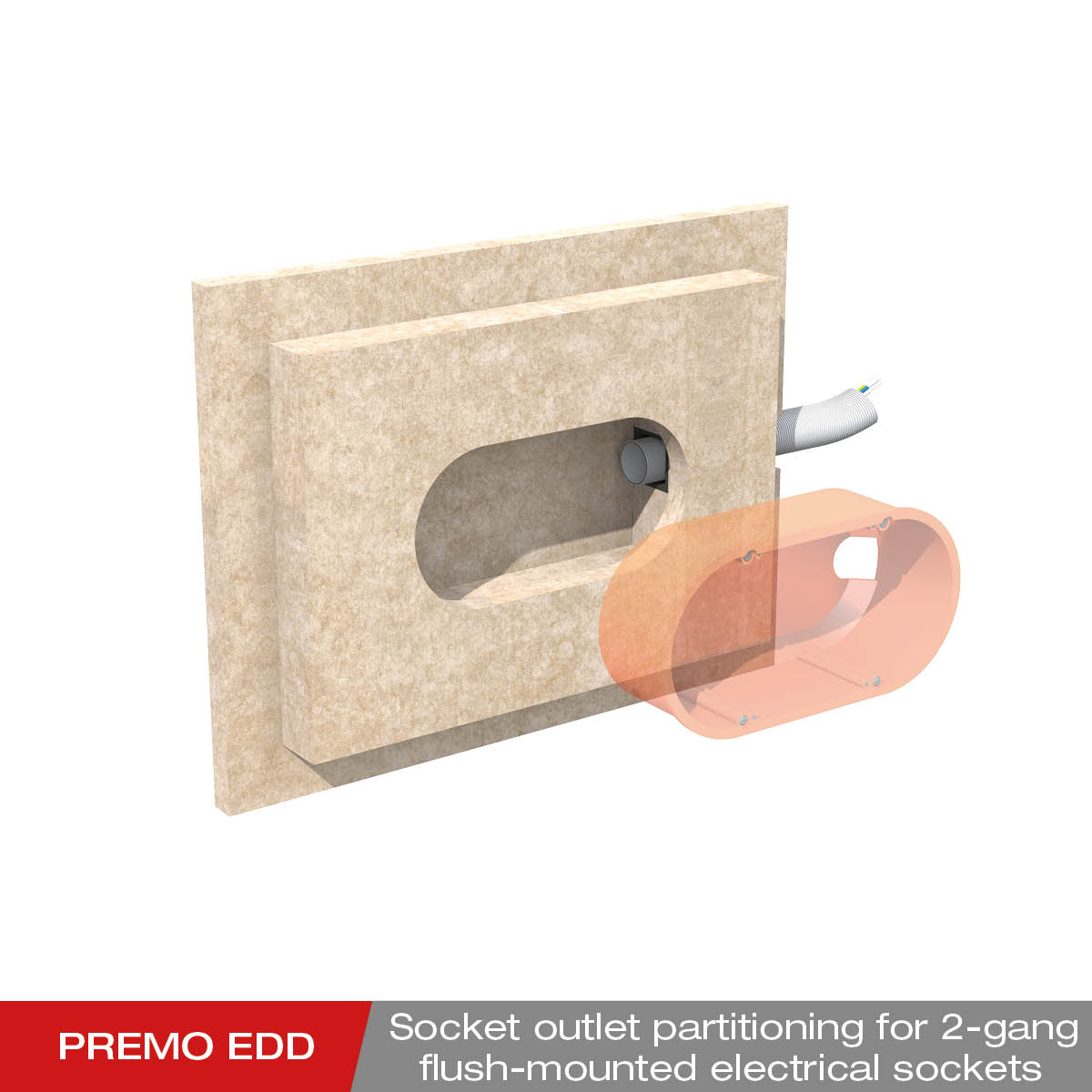

Product - EDD socket outlet partitioning for lightweight walls

EDS / EDD / EDT EI90 for partition walls
