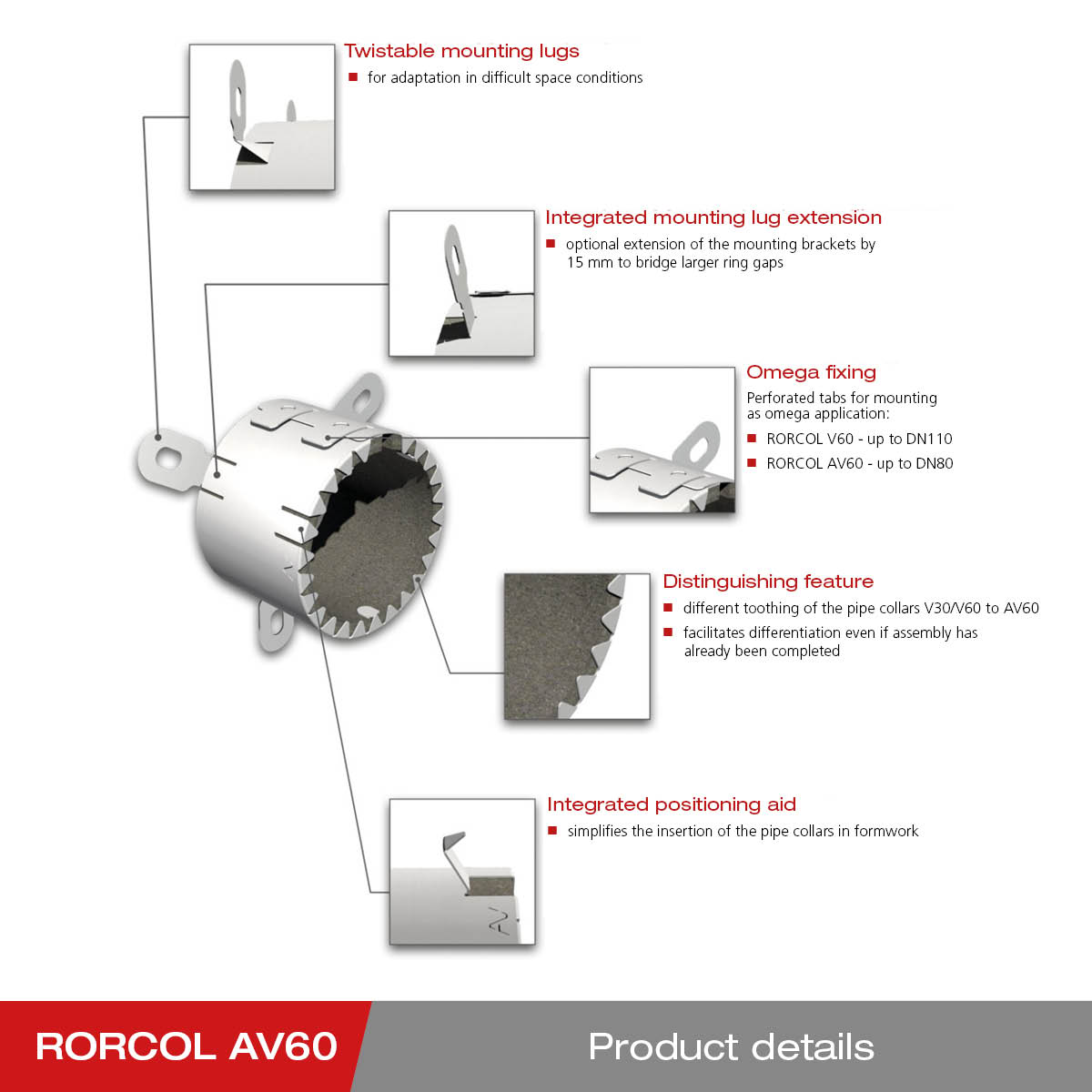

• Housing made of NIROSTA
• Integrated mounting bracket extension for bridging larger ring gaps
• Twistable mounting brackets
• Integrated positioning aid
• Zero distance between the fire protection collars

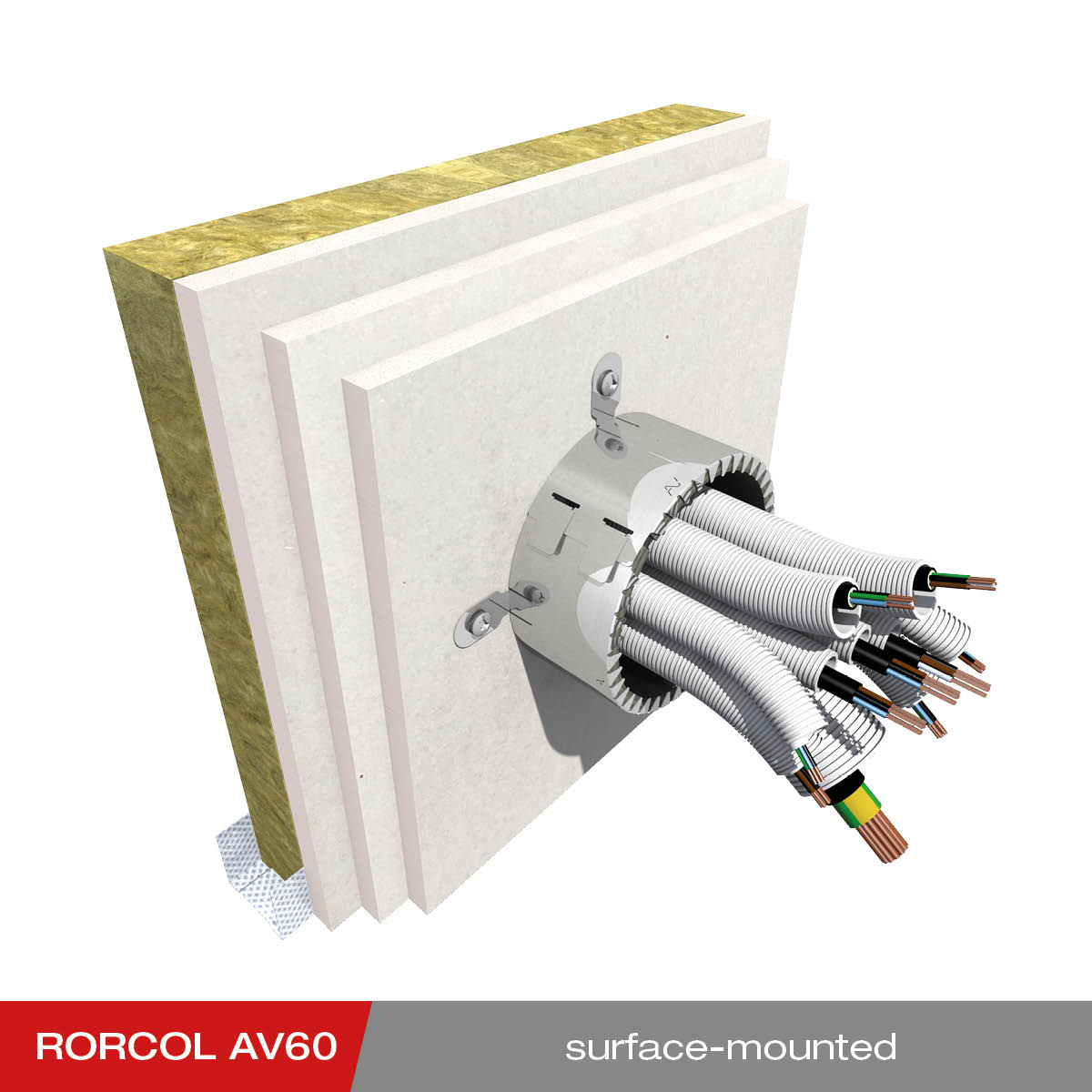

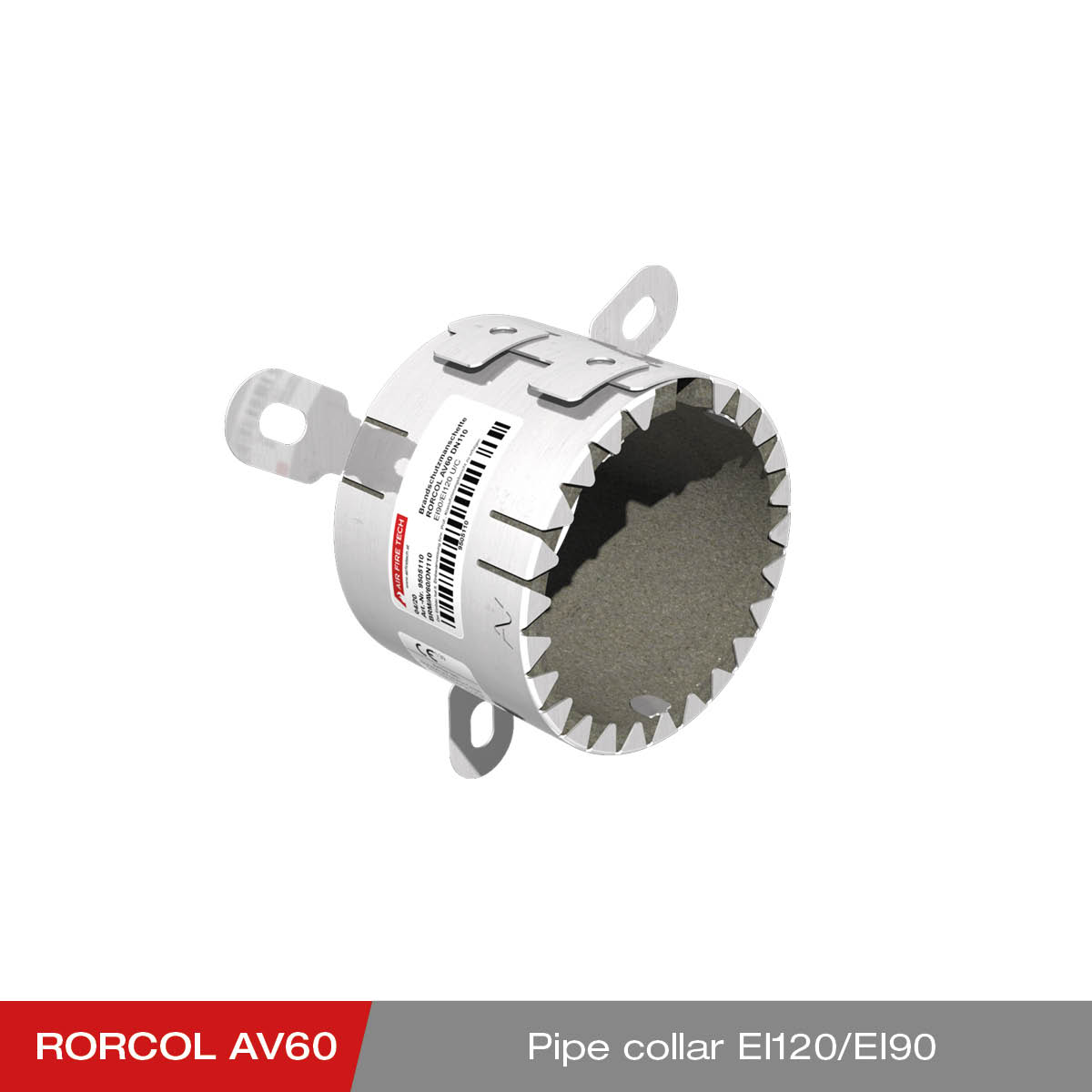

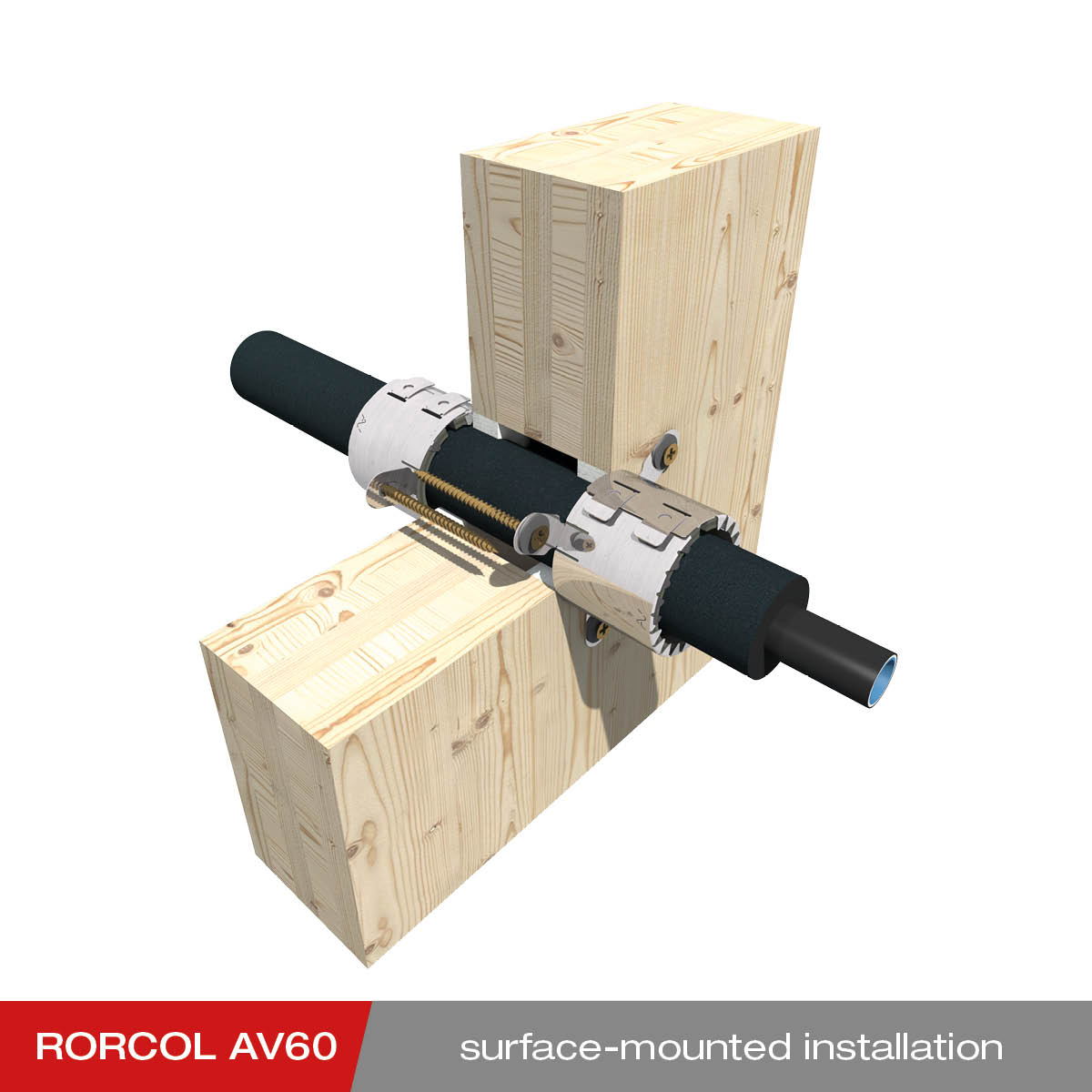

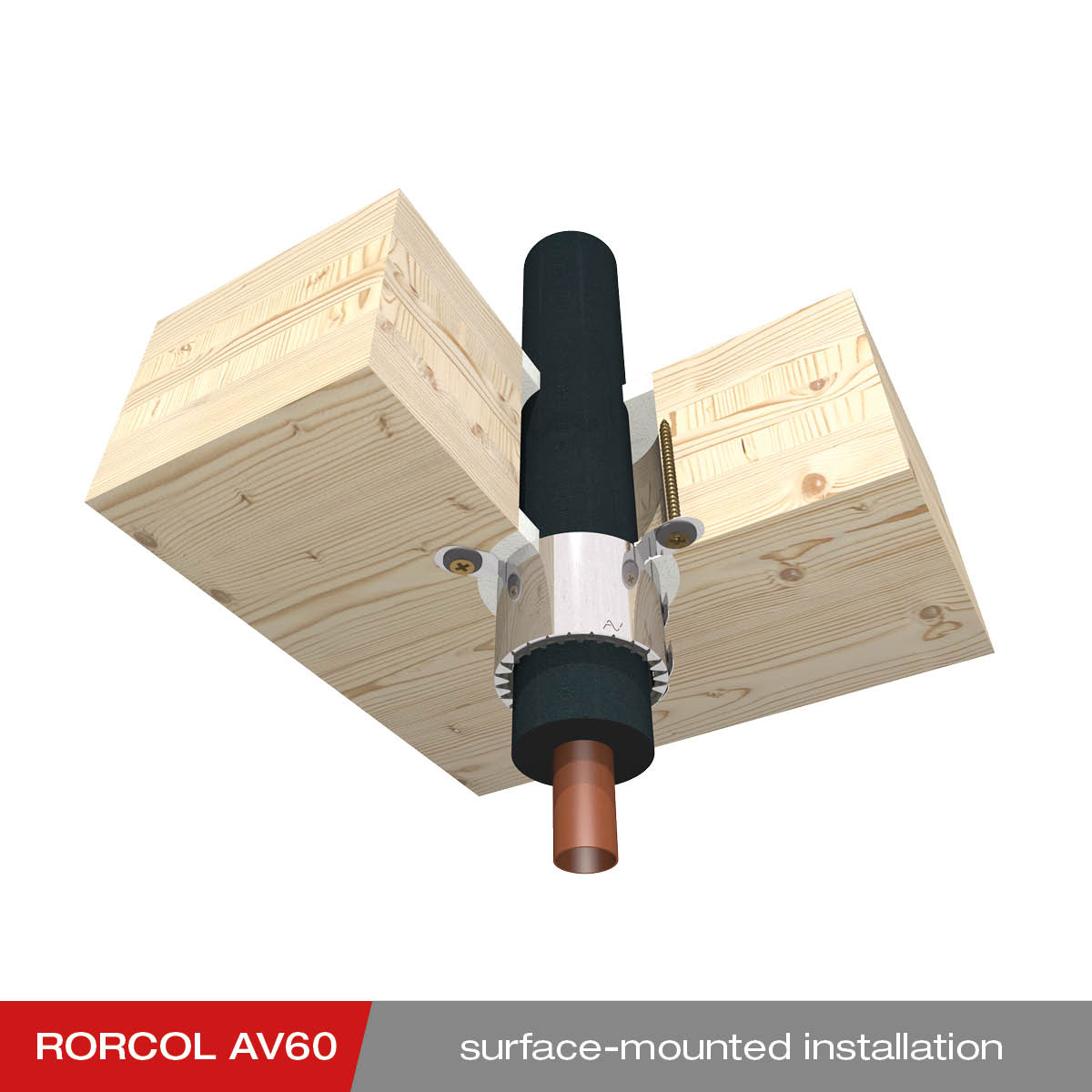

The RORCOL AV60 fire protection collar is used to seal off aluminum composite pipes, metal pipes, electrical installation pipes and cables.

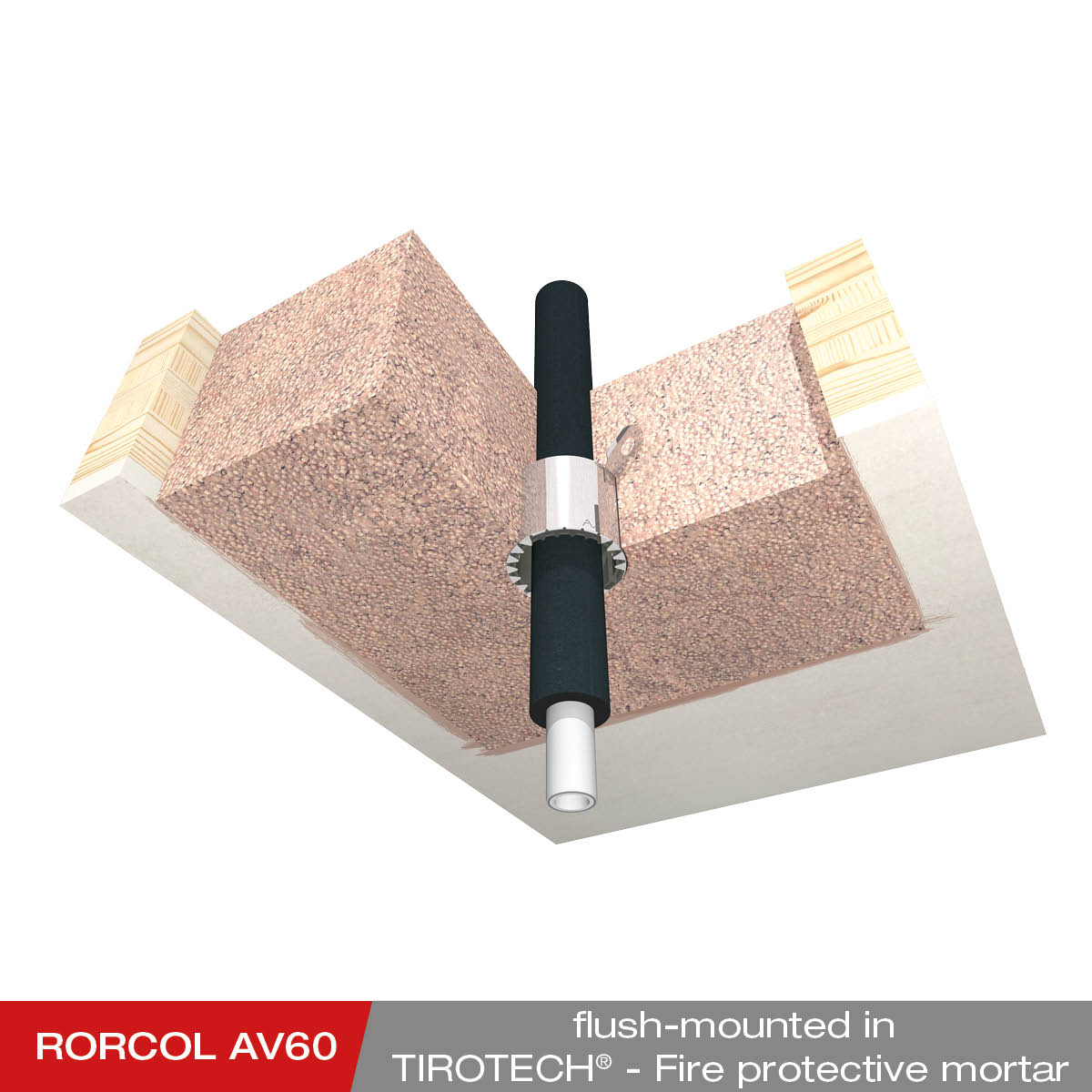

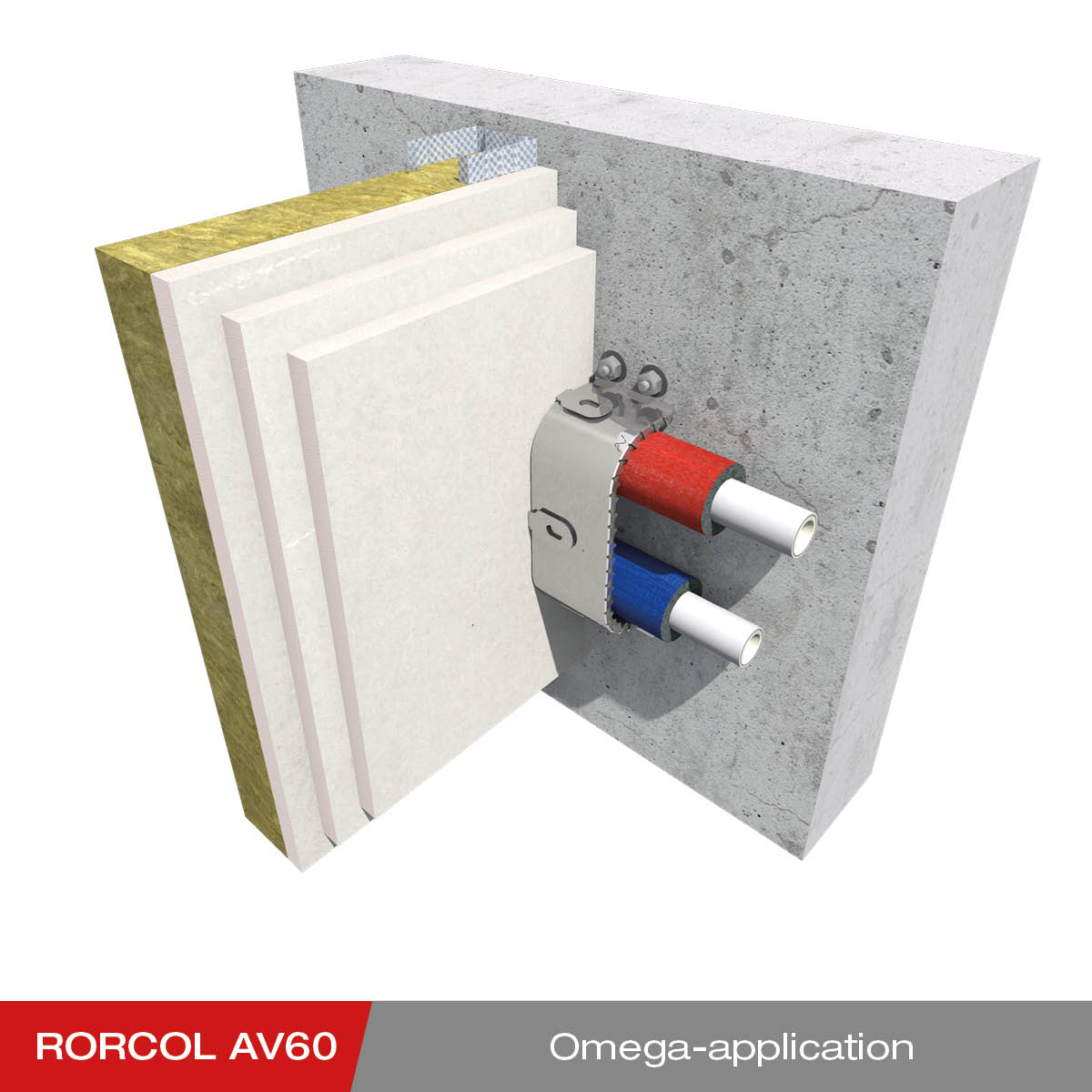

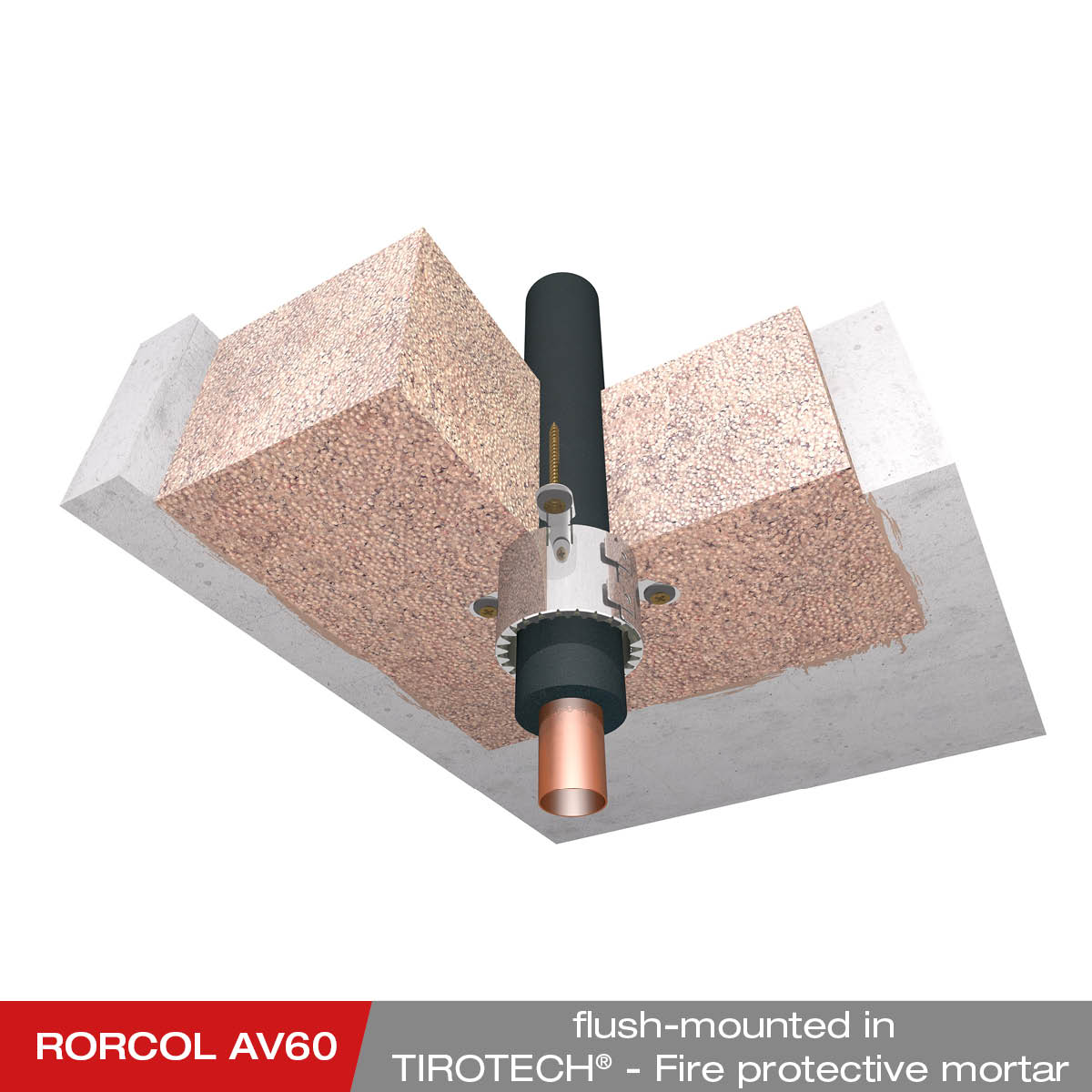

It consists of a stainless steel housing with an internal intumescent layer. Due to the different serration of the stainless steel housing, the RORCOL AV60 and RORCOL V30/V60 fire protection sleeves can be distinguished and assigned to the intended area of application. The mounting brackets are used to fasten the fire protection collar, which can be rotated by up to 45° if space is limited. The integrated mounting lug extension allows them to be extended by 15 mm. The RORCOL AV60 fire protection collar is closed using a locking system, which is used for fastening when installed as an omega application. When using formwork in ceilings, positioning the fire protection collar is made easier by folding out the integrated positioning aids.

In the event of fire, the intumescent inside the stainless steel housing expands. This limits the heat transfer to the side facing away from the fire in the case of aluminum composite pipes, metal pipes and cables.

Permitted separating components

Distance regulation
