FIREREV Basic VKW EI60/EI30
Optical metal cladding, white powder-coated

Brief information

  • Classification: EI60/EI30 (i↔o)
  • Dimensions: 200×200 to 600×600 mm
Product informationDownloads

Downloads

German

Assembly instructions
brochure
Tender text

Other languages

Assembly instructions
Brochure
Brochure
Assembly manual

p

Special features

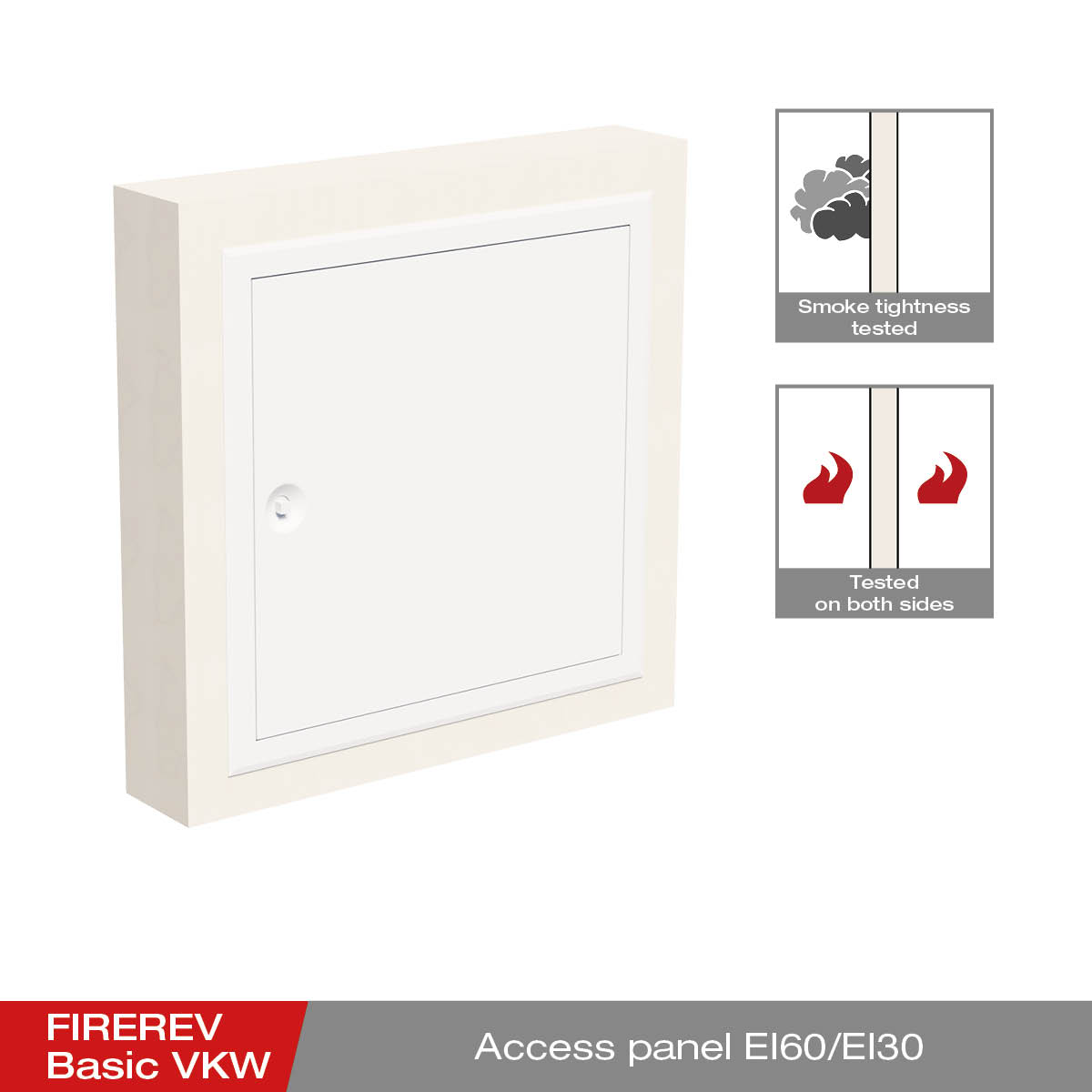

  • Smoke-tight in accordance with EN 1634-3
  • Tested on both sides in accordance with EN 1364-1
  • Tested on both sides in accordance with EN 1634-1

Product description

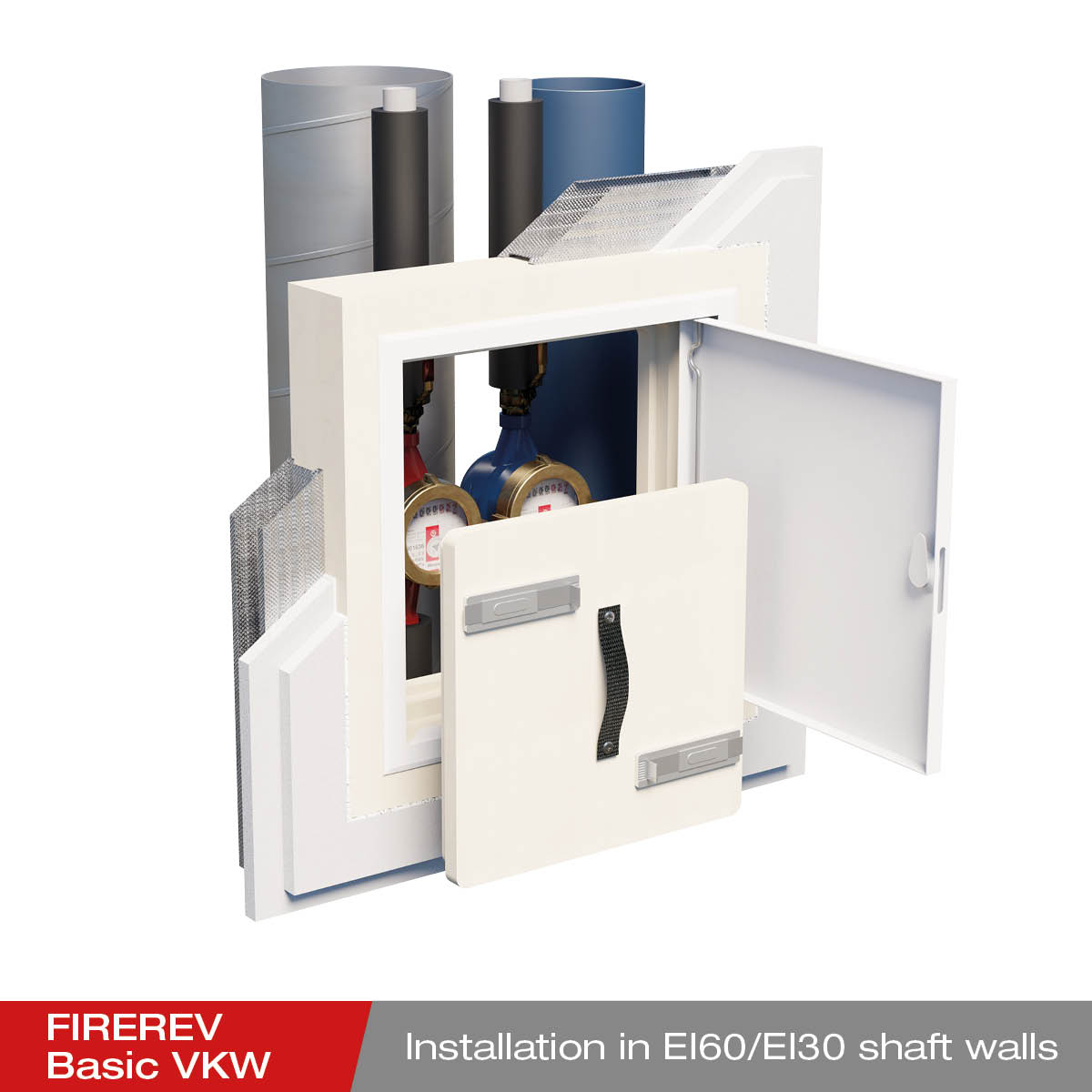

The FIREREV Basic VKW inspection opening closure serves as a service opening in walls for the purpose of maintenance and inspection of installations. At the same time, it maintains the fire protection and sound insulation properties of the wall.

It consists of a stepped cover made of fire protection panels and an optical cladding made of white powder-coated metal. This can be opened and closed using the square latch.

Functionality

Further information

Size chart

Item no.TypeNominal sizeVE
9642053 REV/VKW-EI60_EI30/2020 20×20 cm 120
9643053 REV/VKW-EI60_EI30/3030 30×30 cm 84
9644053 REV/VKW-EI60_EI30/4040 40×40 cm 28
9645053 REV/VKW-EI60_EI30/5050 50×50 cm 28
9646053 REV/VKW-EI60_EI30/6060 60×60 cm 14
