FIREREV Duo VKS EI60/EI30
Visible cover made of gypsum fiberboard with square-head lock

Brief information

  • Classification: EI60/EI30 (i↔o)
  • Dimensions: 200×200 to 600×600 mm
Product informationDownloads
Inquiries

Downloads

Assembly instructions
Brochure
Tender text

Other languages

English
Assembly Instructions
Brochure



French
Brochure



Dutch
Assembly manual



p

Special features

  • Smoke-tight in accordance with EN 1634-3
  • Tested on both sides in accordance with EN 1364-1
  • Tested on both sides in accordance with EN 1634-1
  • Rapid availability of special sizes

Product description

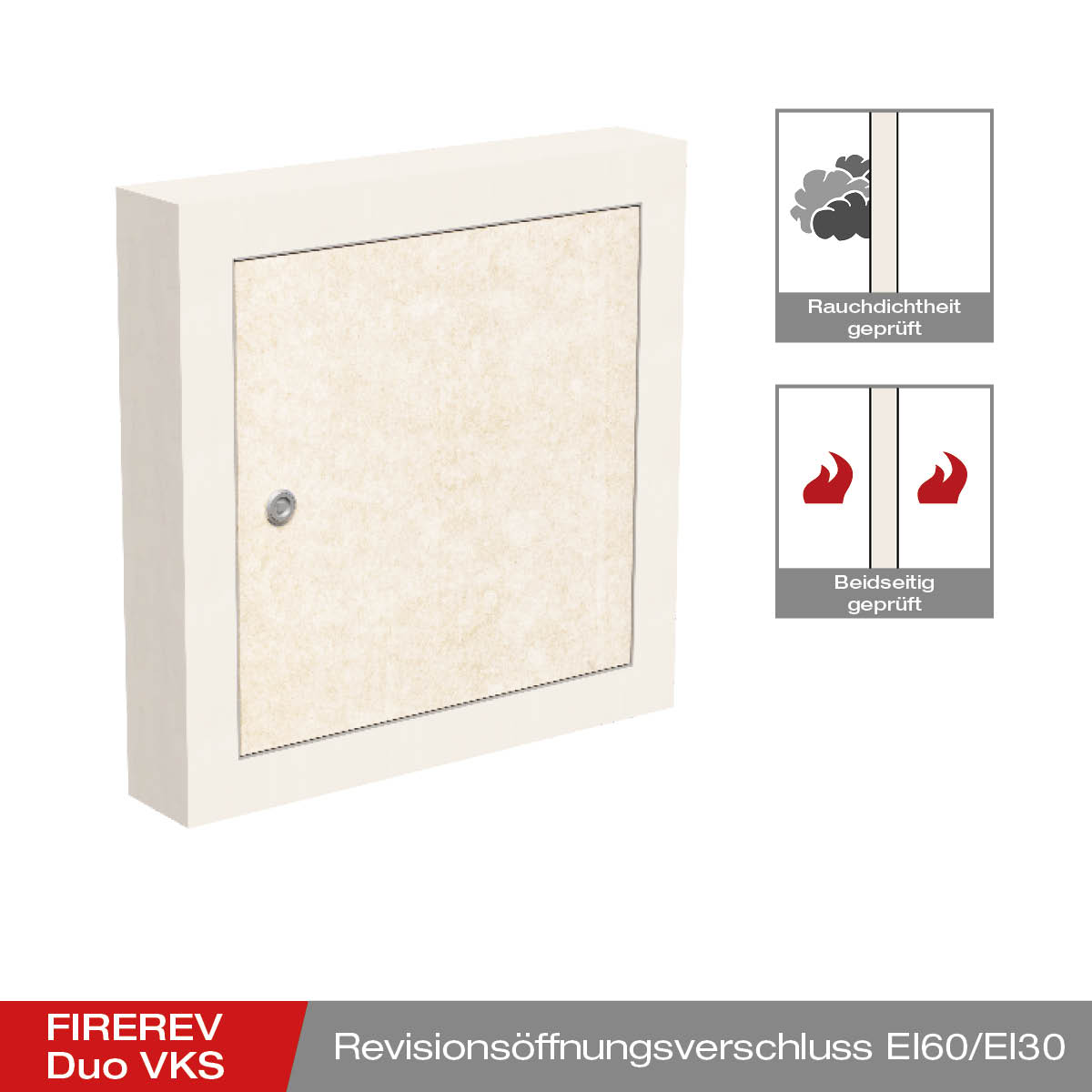

The FIREREV Duo VKS inspection opening closure serves as a service opening in walls for the purpose of maintenance and inspection of installations. At the same time, it maintains the fire protection and sound insulation properties of the wall.

It consists of a stepped closing cover made of fire protection boards and a gypsum fiber board with hinges as a Visible cover. This can be opened and closed using the square latch.

Functionality

Further information

Size chart

Item no.TypeNominal sizeVE
6322020 REV/VKS-EI60_EI30/2020 20×20 cm 120
6323030 REV/VKS-EI60_EI30/3030 30×30 cm 84
6324040 REV/VKS-EI60_EI30/4040 40×40 cm 28
6325050 REV/VKS-EI60_EI30/5050 50×50 cm 28
6326060 REV/VKS-EI60_EI30/6060 60×60 cm 14
Item no.TypeNominal sizeVE
6323040 REV/VKS-EI60_EI30/3040 No stock items 30×40 cm* 1
6323050 REV/VKS-EI60_EI30/3050 No stock items 30×50 cm* 1
6323060 REV/VKS-EI60_EI30/3060 No stock items 30×60 cm* 1
6324050 REV/VKS-EI60_EI30/4050 No stock items 40×50 cm* 1
6324060 REV/VKS-EI60_EI30/4060 No stock items 40×60 cm* 1
6325060 REV/VKS-EI60_EI30/5060 No stock items 50×60 cm* 1
