FIREREV Duo VKA EI90

Visible cover made of gypsum fiberboard with square bolt closure, can be lifted out

Brief information

Classification: EI90 (i ↔ o)
Dimensions: 200×200 to 800×1200 mm
Acoustically tested

Product information Downloads

Inquiries

Downloads

Assembly instructions

Brochure

Tender text

Other languages

English

Assembly Instructions

Brochure

French

Brochure

Dutch

Assembly manual

Special features

Smoke-tight in accordance with EN 1634-3
Acoustically tested
Tested on both sides in accordance with EN 1364-1
Tested on both sides in accordance with EN 1634-1
Rapid availability of special sizes



Product description

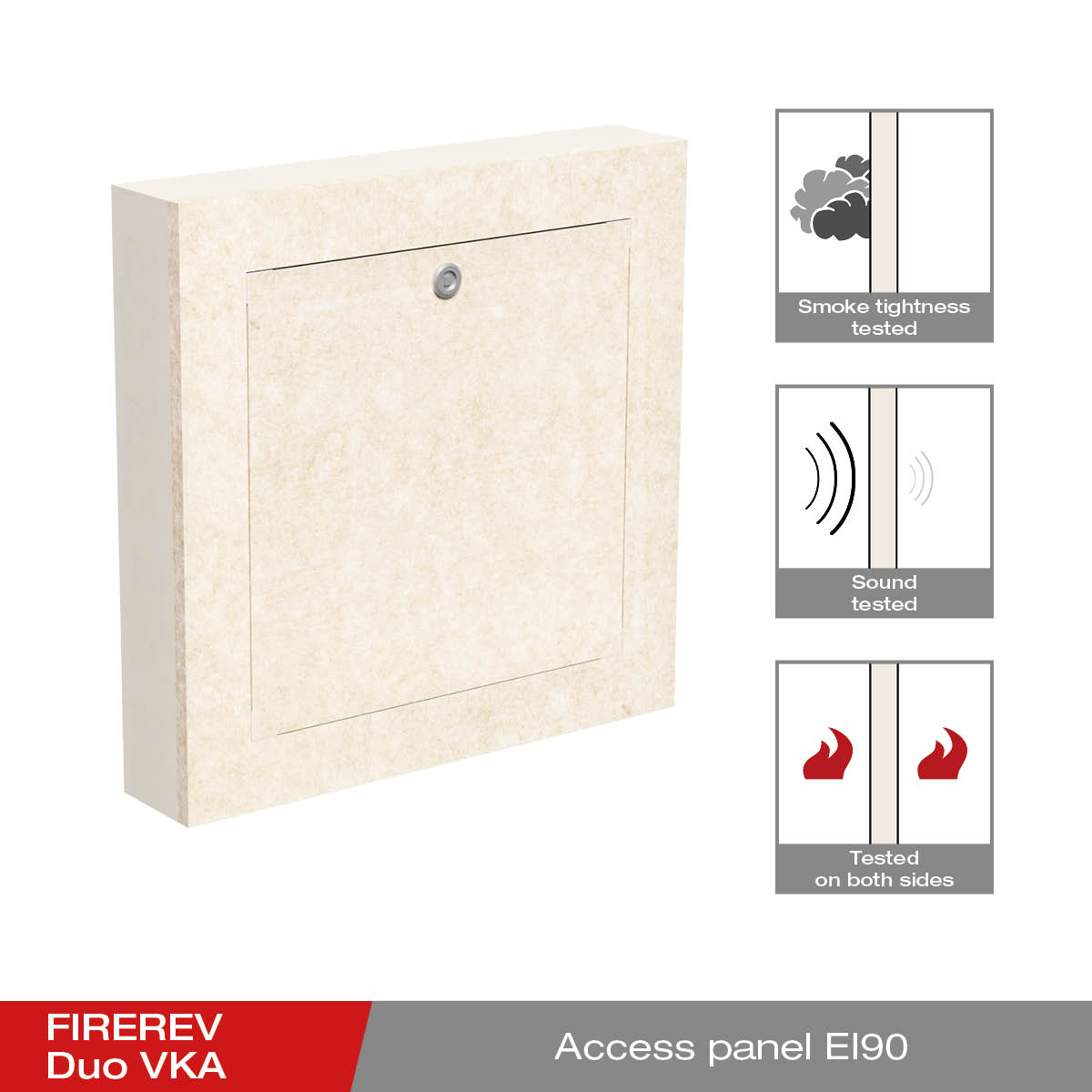

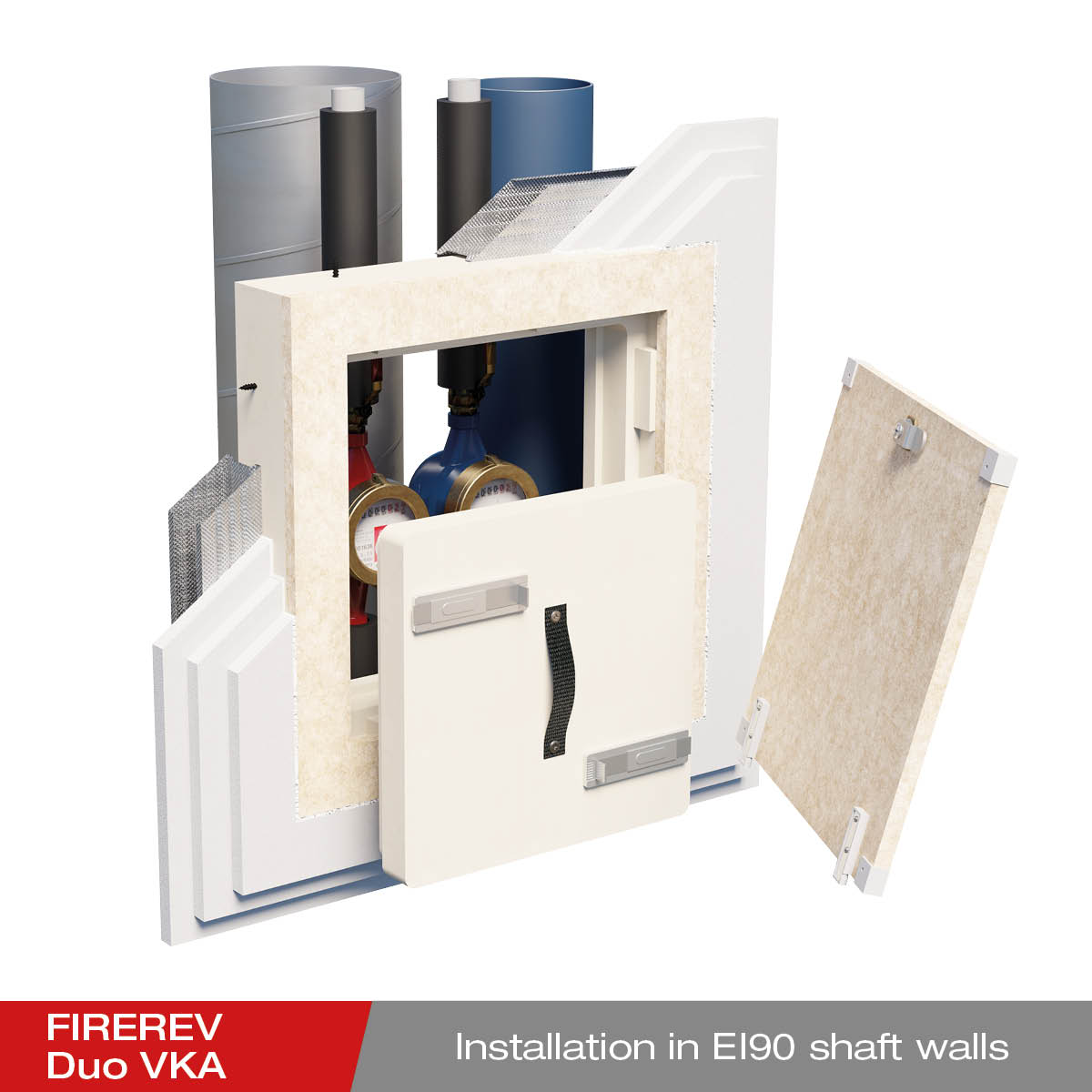

The FIREREV Duo VKA inspection opening closure serves as a service opening in walls for the purpose of maintenance and inspection of installations. At the same time, it maintains the fire protection and sound insulation properties of the wall.

It consists of a stepped closing cover made of fire protection boards and a gypsum fiber board with hinges as a Visible cover. This can be opened and closed using the square latch.



Functionality



Further information



Size chart

Item no.	Type	Nominal size	VE
6955010	REV/VKA-EI90/50100	50×100 cm*	1
6956010	REV/VKA-EI90/60100	60×100 cm*	1
6956010	REV/VKA-EI90/60120	60×120 cm*	1
6957070	REV/VKA-EI90/7070	70×70 cm*	1
6957010	REV/VKA-EI90/70100	70×100 cm*	1
6958080	REV/VKA-EI90/8080	80×80 cm*	1
6958010	REV/VKA-EI90/80100	80×100 cm*	1
6958012	REV/VKA-EI90/80120	80×120 cm*	1
