FIREREV Duo DE/GPS EI90
Visible cover made of gypsum fiberboard with snap lock

Brief information

  • Classification: EI90 (a↔b)
  • Dimensions: 200×200 to 600×600 mm
Product informationDownloads
Inquiries

Downloads

Assembly instructions
Brochure
Tender text

Other languages

English
Assembly Instructions
Brochure



French
Brochure



Dutch
Assembly manual



p

Special features

  • Fire load from the top and underside of the ceiling tested in accordance with EN 1364-2
  • Commercially available CD profiles can be used
  • Rapid availability of special sizes

Product description

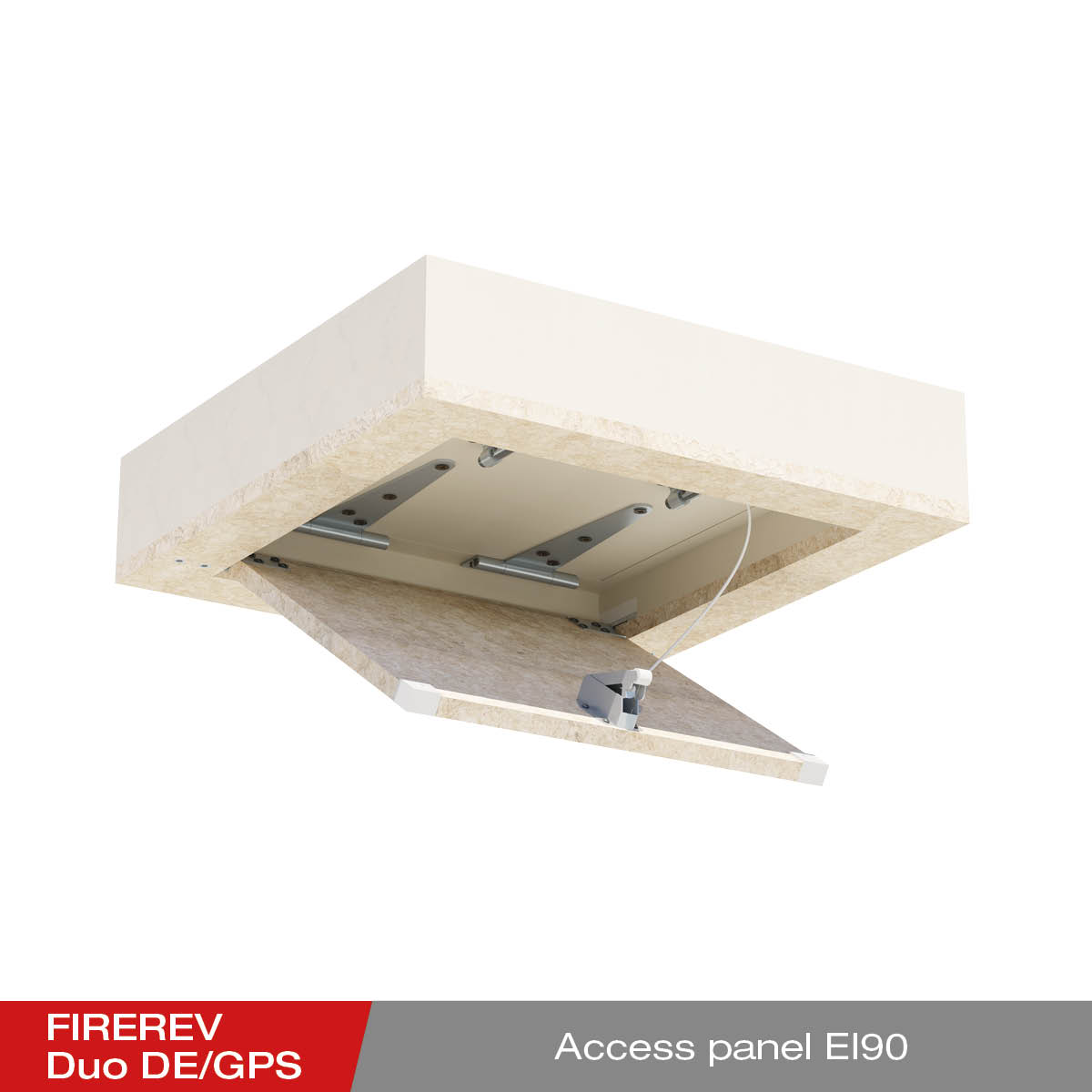

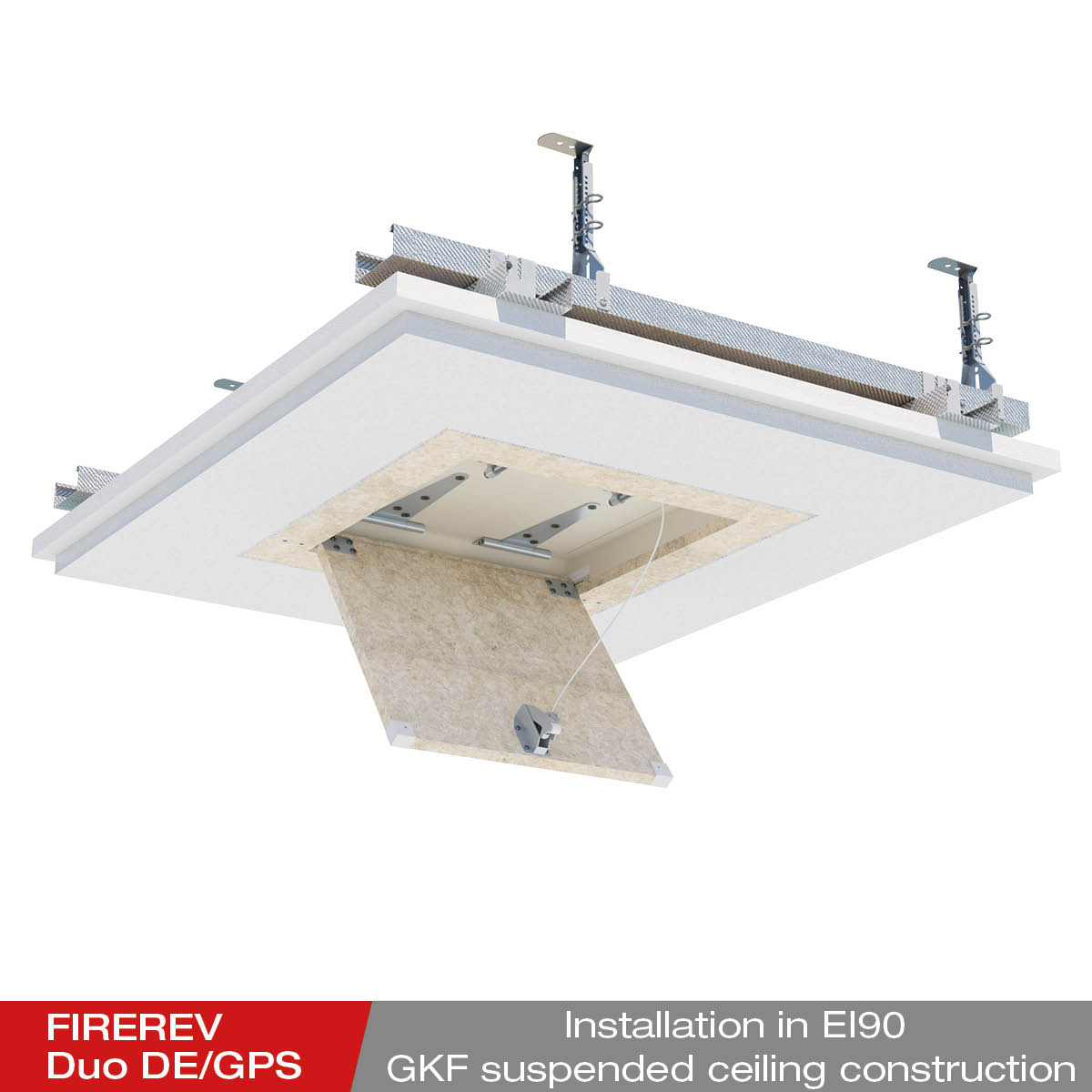

The FIREREV Duo DE/GPS inspection opening closure serves as a service opening in suspended ceiling constructions for the purpose of maintenance and inspection of installations. At the same time, it maintains the fire protection properties of the suspended ceiling construction.

It consists of a stepped closing cover made of fire protection boards and a gypsum fiber board with hinges as a Visible cover. This can be opened and closed using the snap lock. The integrated safety catch on the inside prevents uncontrolled opening of the visual cover.

Functionality

Further information

Size chart

Item no.TypeNominal sizeVE
6192020 REV/EN/GPS-EI90/2020 20×20 cm 80
6193030 REV/EN/GPS-EI90/3030 30×30 cm 60
6194040 REV/EN/GPS-EI90/4040 40×40 cm 20
6195050 REV/EN/GPS-EI90/5050 50×50 cm 20
6196060 REV/EN/GPS-EI90/6060 60×60 cm 10
